Hydraulic Cone Crushers: Single-Cylinder Simplicity, Multi-Cylinder Control

What hydraulics changed

On a spring cone crusher, the setting is mechanical and tramp iron is absorbed by spring deflection. A hydraulic cone crusher moves both jobs into the hydraulic system: the closed side setting is adjusted hydraulically — on multi-cylinder designs by a hydraulic motor rotating the fixed cone — tramp iron passes through a dual-direction hydraulic release, and a packed chamber can be cleared hydraulically instead of by digging. The result is a machine that holds its setting under load, recovers from tramp events in minutes, and accepts connection to a plant's DCS automatic control system.

Single-cylinder: the efficient secondary crusher

In the single-cylinder design, one main hydraulic cylinder supports the main shaft and performs setting adjustment and chamber clearing. The structure is simpler, the crusher crushes with high efficiency at lower operating cost, and product quality is strong — a combination aimed at secondary crushing of hard rock and ore, where the duty is heavy but the setting tolerance is moderate. For plants that value mechanical simplicity at remote sites — fewer cylinders, fewer hoses, one clear hydraulic circuit — the single-cylinder machine is usually the right answer.

Multi-cylinder: setting stability as a feature

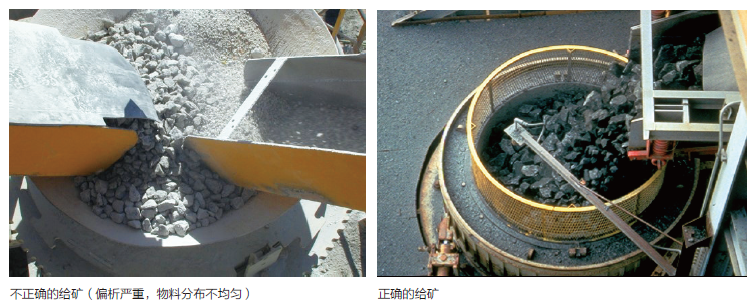

The multi-cylinder design rings the frame with hydraulic cylinders, distributing the clamping and release forces. It works on the lamination crushing principle — a full chamber, particle-on-particle crushing, stroke and speed combined for higher throughput — and converts between short-head extra-fine and standard extra-coarse chamber configurations. Parts dismantle from the top or the side; the non-contact labyrinth seal protects the oil without water sealing. Published capacities are stated at a loose feed density of 1.6 t/m³ in open circuit, with closed-circuit operation typically 15%–30% higher. This is the platform for graded aggregate production, where a setting that wanders is a product that fails specification.

Where the platform choice is made

Platform selection — duty, product grading, whole-life cost — is the subject of the cone crushers page, and is deliberately not repeated here. What this page adds to that decision is the architecture itself: count the cylinders, hoses and circuits your maintenance crew will live with, because on a hydraulic cone crusher the setting and protection system is the machine's daily personality, not a brochure feature.

Hydraulic system care decides crusher life

On a hydraulic cone crusher, the hydraulic system is not an accessory — it carries the setting, the protection and, on single-cylinder designs, the main shaft itself. Its care is therefore crusher care. Oil cleanliness is the first discipline: the filters and seals in our parts catalogue exist because contaminated oil wears pumps, valves and cylinder surfaces in a system that cannot be allowed to become imprecise. Pressure behaviour is the second: a system that holds setting and releases tramp iron crisply is a healthy system, and drift in either behaviour is an early, cheap warning. The third discipline is event logging — tramp releases, chamber-clearing operations, pressure excursions — because a hydraulic system that has absorbed a season of tramp events has a service story its seals and accumulators will eventually tell. Enquiries for hydraulic machines and their parts are welcome to include that story; it is how honest advice about configuration and spares begins.
